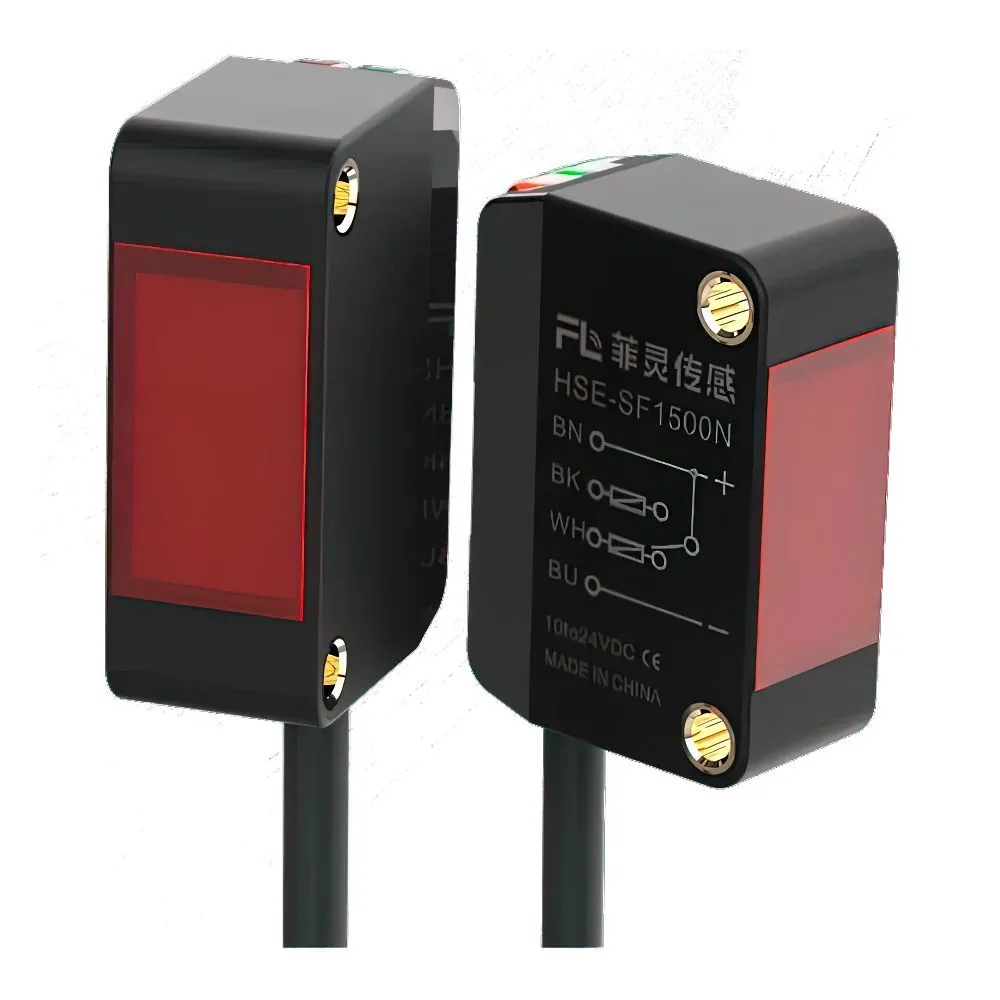

Описание

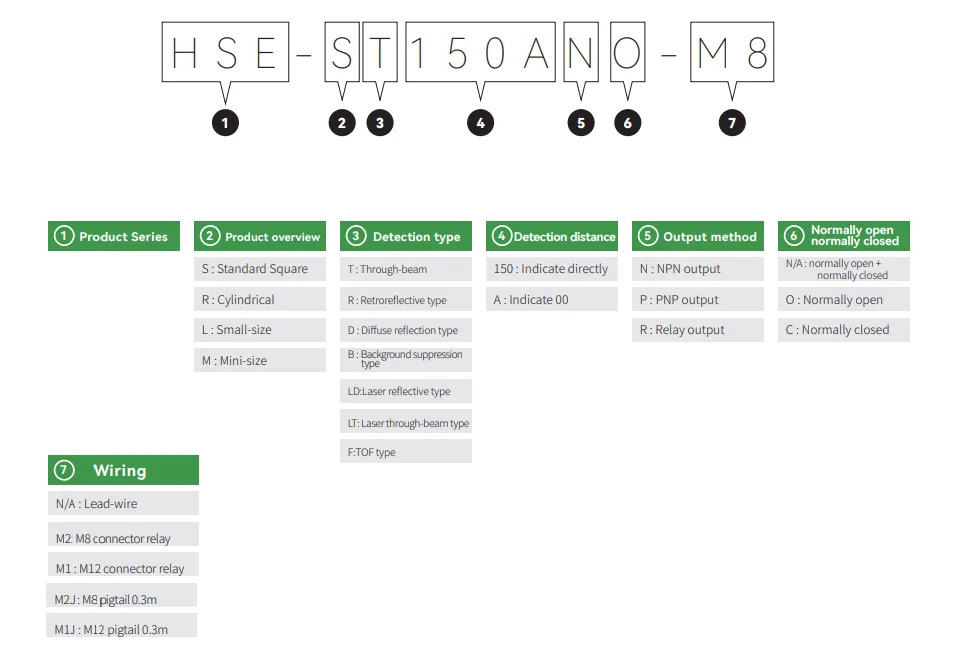

Легенда номера модели
Информация для заказа
|
Тип |
Дистанция срабатывания |
Output method（NPN） |
Output method（PNP） |
Light source |
|||||
|
Through-beam |
Standard type |
15m |
HSE-ST150AN |
HSE-ST150AP |
Red LED |
||||
|
|
|
||||||||
|
Diffuse reflection type |
Diffuse reflection Standard type |
100mm |
HSE-SD0100N |
HSE-SD0100P |
Red LED |
||||
|
Diffuse reflection Long range |
300mm |
HSE-SD0300N |
HSE-SD0300P |
Red LED |
|||||
|
Retroreflective type |
Standard type Without MSR |
|
4m |
HSE-SR4000N |
HSE-SR4000P |
Red LED |
|||
|
|
|||||||||
|
Through-beam type |
Laser type |
|
50m |
HSE-SLT5AAN |
HSE-SLT5AAP |
Red laser |
|||
|
|
|||||||||
|
Diffuse reflection type |
Diffuse reflection Laser type |
500mm |
HSE-SLD500N |
HSE-SLD500P |
Red laser |
||||
|
Background suppression type |
BGS Standard type |
100mm |
HSE-SB0100N |
HSE-SB0100P |
Red LED |
||||
|
BGS Long range |
300mm |
HSE-SB0300N |
HSE-SB0300P |
Red LED |
|||||
|
TOF Type |
Standard type |
|
1500mm |
HSE-SF1500N |
HSE-SF1500P |
Infrared laser |
|||
|
|
|||||||||
|
Long range |
|
4000mm |
HSE-SF4000N |
HSE-SF4000P |
Infrared laser |
||||
|
|
|||||||||
|
Type |
Detection distance |
Output method（NPN） |
Output method（PNP） |
Light source |
|||||
|
Through-beam |
Standard type |
|
15m |
HSE-ST150AN-M2/J |
HSE-ST150AP-M2/J |
Red LED |
|||
|
|
|||||||||
|
Diffuse reflection type |
Diffuse reflection Standard type |
100mm |
HSE-SD0100N-M2/J |
HSE-SD0100P-M2/J |
Red LED |
||||
|
Diffuse reflection Long range |
300mm |
HSE-SD0300N-M2/J |
HSE-SD0300P-M2/J |
Red LED |
|||||
|
Retroreflective type |
Standard type Without MSR |
|
4m |
HSE-SR4000N-M2/J |
HSE-SR4000P-M2/J |
Red LED |
|||
|
|
|||||||||
|
Through-beam type |
Laser type |
|
50m |
HSE-SLT5AAN-M2/J |
HSE-SLT5AAP-M2/J |
Red laser |
|||
|
|
|||||||||
|
Diffuse reflection type |
|
500mm |
HSE-SLD500N-M2/J |
HSE-SLD500P-M2/J |
Red laser |
||||
|
Background suppression type |
BGS Standard type |
100mm |
HSE-SB0100N-M2/J |
HSE-SB0100P-M2/J |
Red LED |
||||
|
BGS Long range |
300mm |
HSE-SB0300N-M2/J |
HSE-SB0300P-M2/J |
Red LED |
|||||
|
TOF Type |
Standard type |
|
1500mm |
HSE-SF1500N-M2/J |
HSE-SF1500P-M2/J |
Infrared laser |
|||
|
|
|||||||||
|
Long range |
|
4000mm |
HSE-SF4000N-M2/J |
HSE-SF4000P-M2/J |
Infrared laser |
||||
|
|
|||||||||

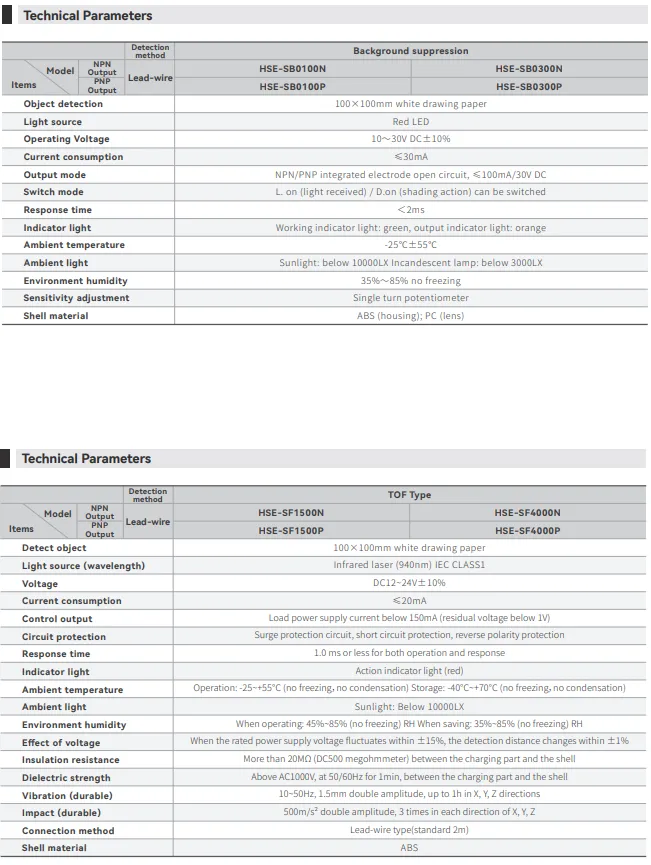

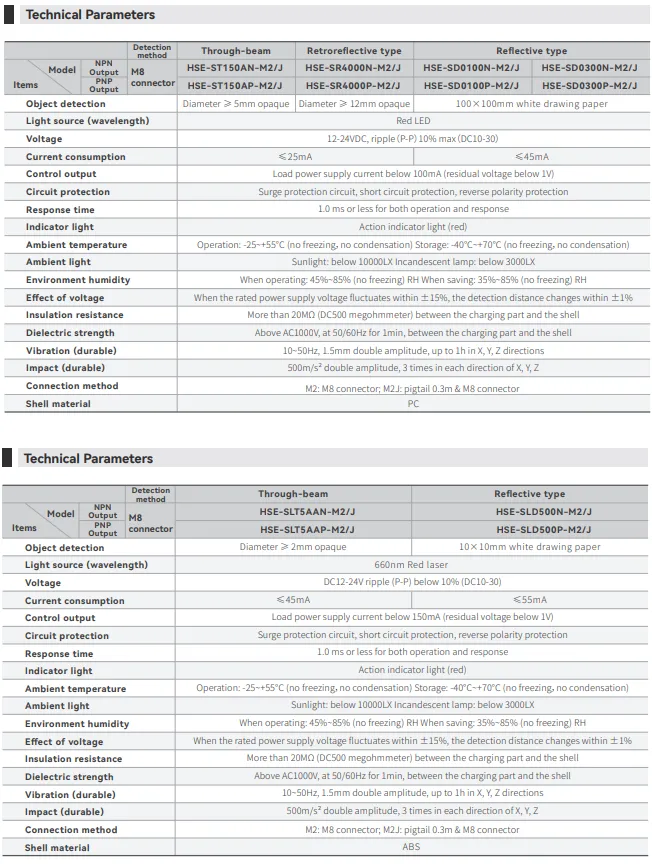

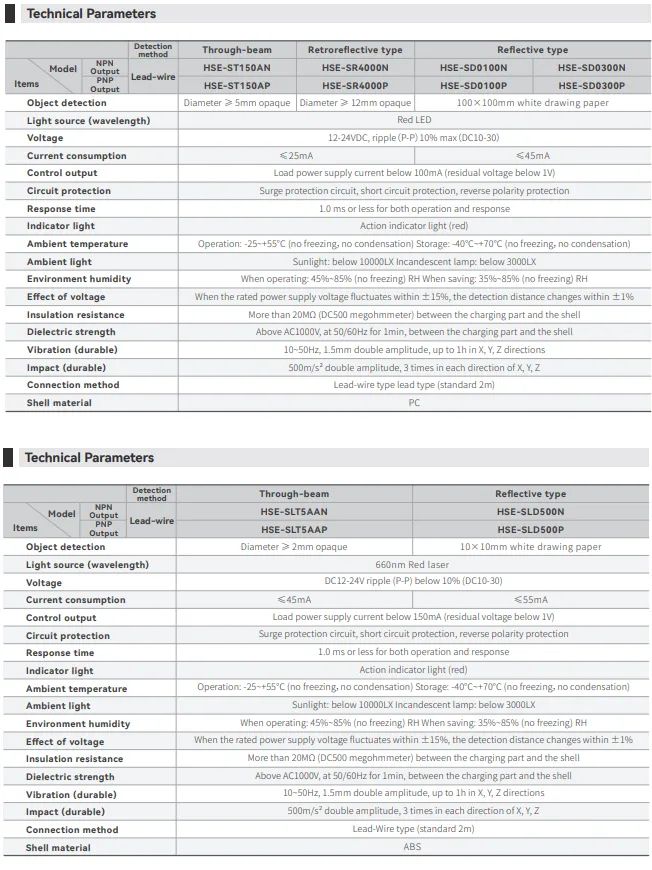

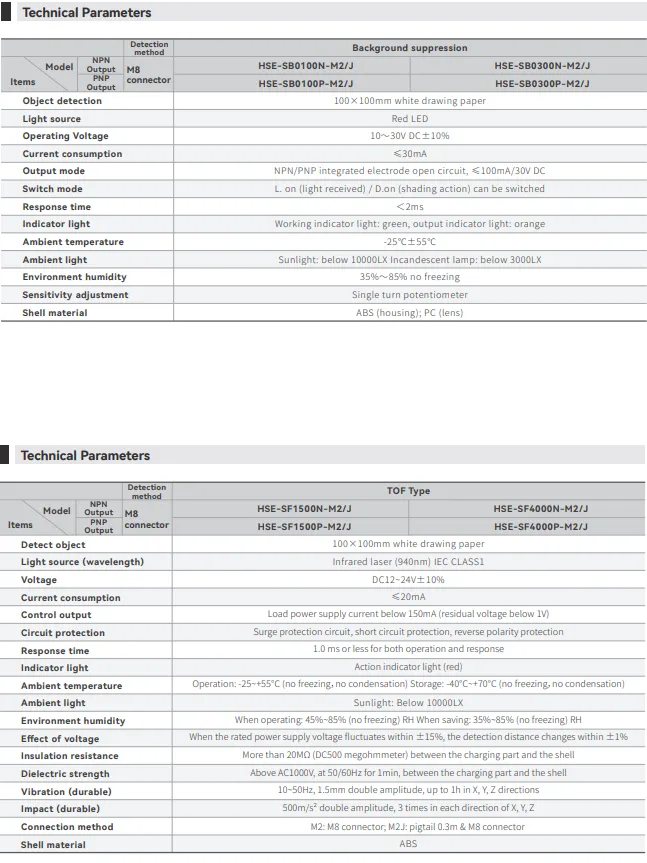

Технические характеристики

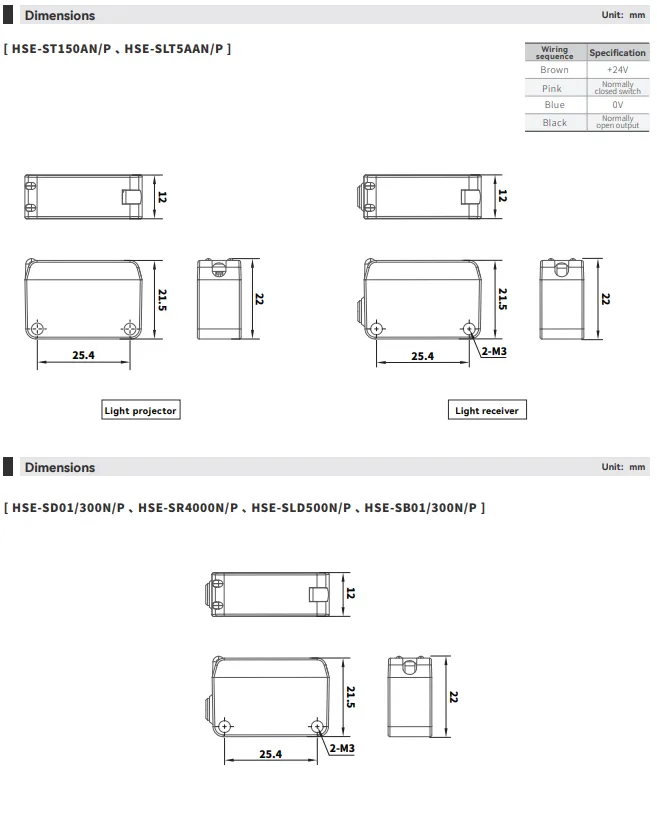

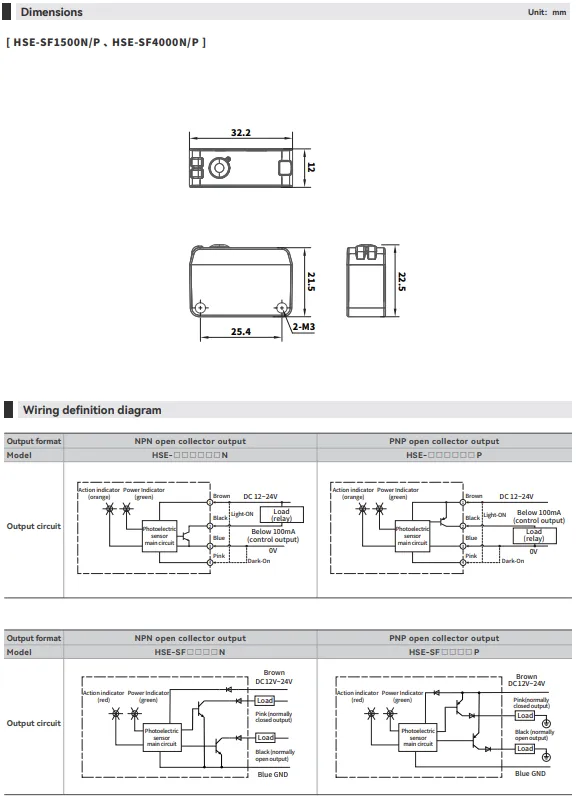

Размеры
